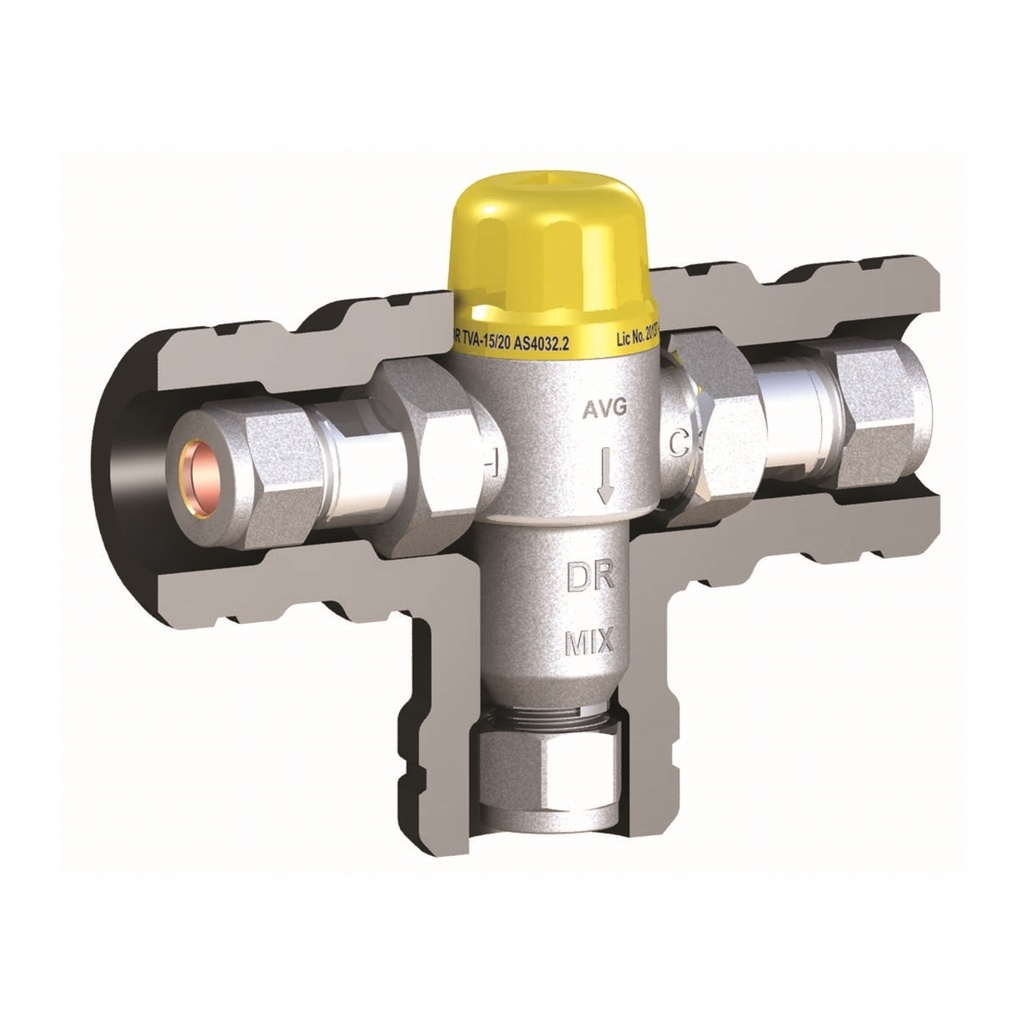

AVG Tempering Valve 15mm Standard Yellow Cap c/w Insulation.
IN STOCK - Will ship today
Details
Product Code :
FTV15Description
The FORGE Standard Tempering Valve is perfect for applications needing to mix hot and cold water to deliver a continuous temperate water temperature through a hot water system. This tempering valve has been upgraded to include high-temperature components. It provides more accurate control +/- 3°C from set temperature (to AS4032.2). Will supply 50°C
mix with 50°C
hot supply. The TVA standard valve has a cast DR bronze body, integral 60 mesh stainless steel line strainers, integral non return valves, stainless steel springs, O-ring seal union connectors complete with nuts and olives. Tamper proof adjustment. Factory set at 50°C (must be commissioned onsite by installer).
Features
| Integral mesh strainers |
| Cast DR brass body |
| Integral non return valves |
| Innovative polymers for greater resistance to calcium deposits |
|
Factory set at 50°C (must be commissioned on site) |
|
Tested and certified to AS 4032.2 |
| Insulation jacket provided as per AS 4032.2 |
- Cold water supply temperature
- 5°C - 30°C
- Hot water supply temperature
- 60°C - 99°C
- Set temperature
- 50°C Standard (Must be commissioned on site by installer)
- Outlet temperature
- Accuracy of ±3°C ( as per AS 4032.2)
- Minimum temperature differential
- 15°C < (between hot supply and outlet temperature)
- Maximum working pressure (static)
- 1400Kpa
- Maximum working pressure (dynamic)
- 500Kpa
- Pressure supply differential (dynamic)
- 2:1 Max
- Maximum permitted pressure variation in either supply
- To control outlet temperature to ±3°C (from supply pressure at commissioning) ±10% Max
- Minimum flow rate
- 3.6 L/Min under outlet pressure 10Kpa
