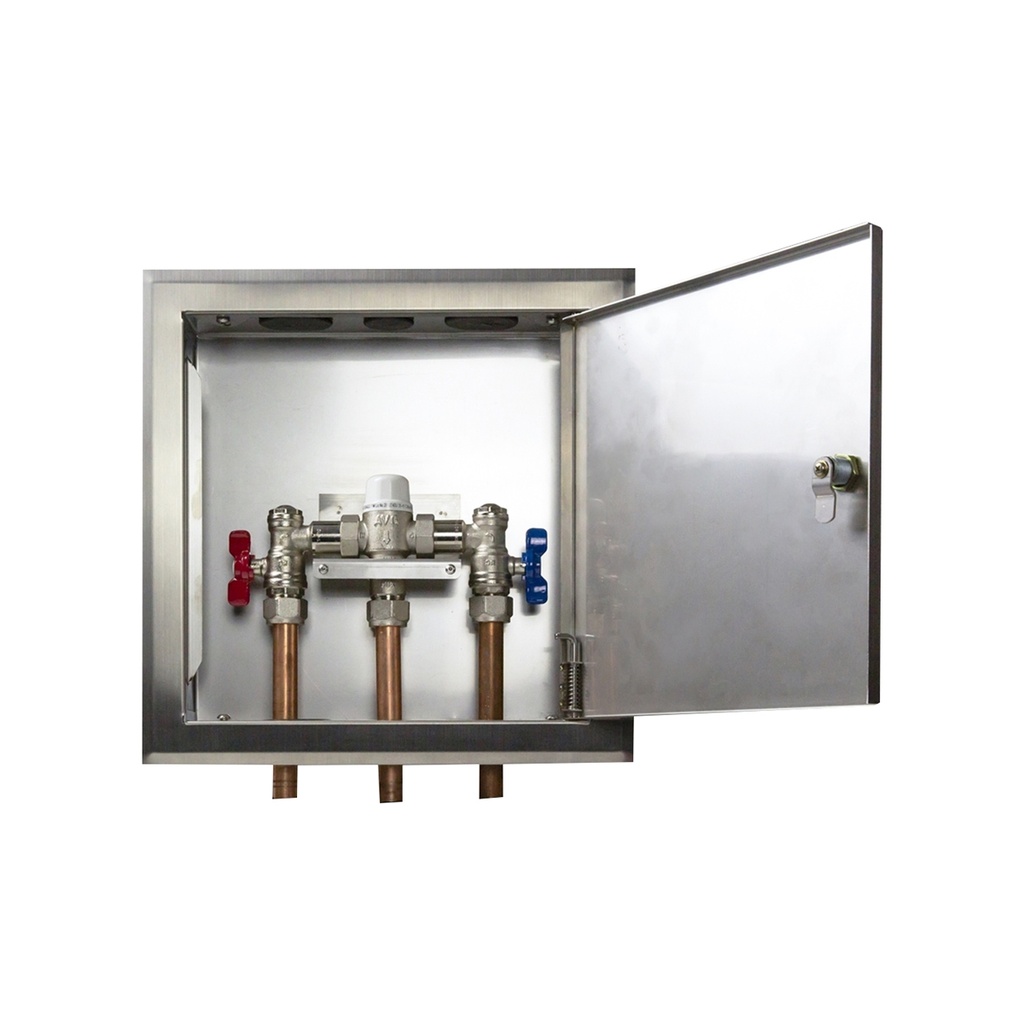

AVG Thermostatic Mixing Valve 20mm Plumbed in SS Recessed Wall Box
IN STOCK - Will ship today
Details
Product Code :
FTMV20-PIBDescription
The FORGE™ AVG range of High Performance Thermostatic Mixing Valves with pre-plumbed wall box are all manufactured and certified to meet the stringent requirements of AS4032.1 Thermostatic Mixing Valves. Watermark and NSW Department approved and comply with the specified valve clearances of the Australian standards.
Features
| 305mm x 305mm x 75mm deep stainless steel wall box with hinged door |
| Pre-fitted copper pipe tails with bypass option available |
| High performance and suitable for a wide range of applications |
| High mixed water temperature stability under varying inlet conditions |
|
Rapid shut down of mixed outlet flow in the event of hot or cold water supply interruption |
|
Easily serviced |
|
Service operating range to as low as 60°C |
|
Anti Tamper adjustment mechanism |
- Wall Box
- 305mm x 305mm x 75mm deep stainless steel wall box
- Temperature
- Fully adjustable from 35⁰ to 45⁰ C
- Wide Inlet Temperature range
- Cold Supply: 5°C - 25°C and Hot Supply: 60°C - 90°C
- Compliance
- Complies with AS/NZS:3500
- Testing
- Manufactured and tested to AS4032.1
