AVG Tempering Valve 15mm - High Performance Orange Cap c/w Insulation
IN STOCK - Will ship today
Details
Product Code :
FTV15HPDescription

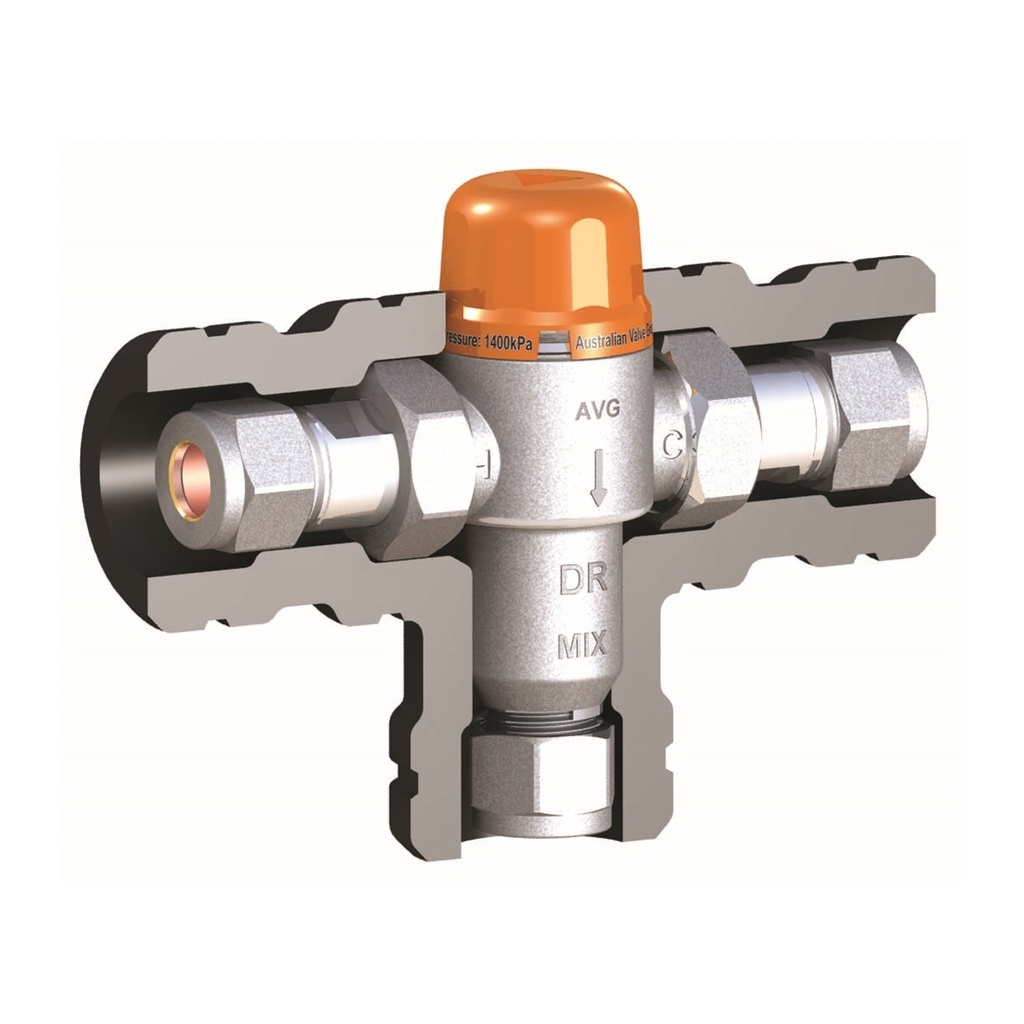

The FORGE High Performance Tempering Valve is perfect for applications needing to mix hot and cold water to deliver a continuous temperate water temperature through a hot water system. Higher hot water supply temperature rating so as to be suitable for solar hot water applications. Flow rate 4 liters per minute. Will supply 50C mix with 55C hot supply.
Features
| Integral mesh strainers |
| Cast DR brass body |
| Integral non return valves |
| Innovative polymers for greater resistance to calcium deposits |
|
Factory set at 50°C (must be commissioned on site) |
|
Tested and certified to AS 4032.2 |
|
Insulation jacket provided as per AS 4032.2 |
- Cold water supply temperature
- 5°C - 30°C
- Hot water supply temperature
- 60°C - 99°C
- Adjustable outlet temperature
- 40°C - 50°C
- Set temperature
- 50°C Standard (Must be commissioned on site by installer)
- Accuracy of outlet temperature
- ±3°C ( as per AS 4032.2)
- Minimum temperature differential
- 15°C < (between hot supply and outlet temperature)
- Maximum working pressure (static)
- 1400Kpa
- Maximum working pressure (dynamic)
- 500Kpa
- Pressure supply differential (dynamic)
- 2:1 Max
- Maximum permitted pressure variation in either supply
- To control outlet temperature to ±3°C (from supply pressure at commissioning) ±10% Max
- Minimum flow rate
- 3.6 L/Min under outlet pressure 10Kpa
