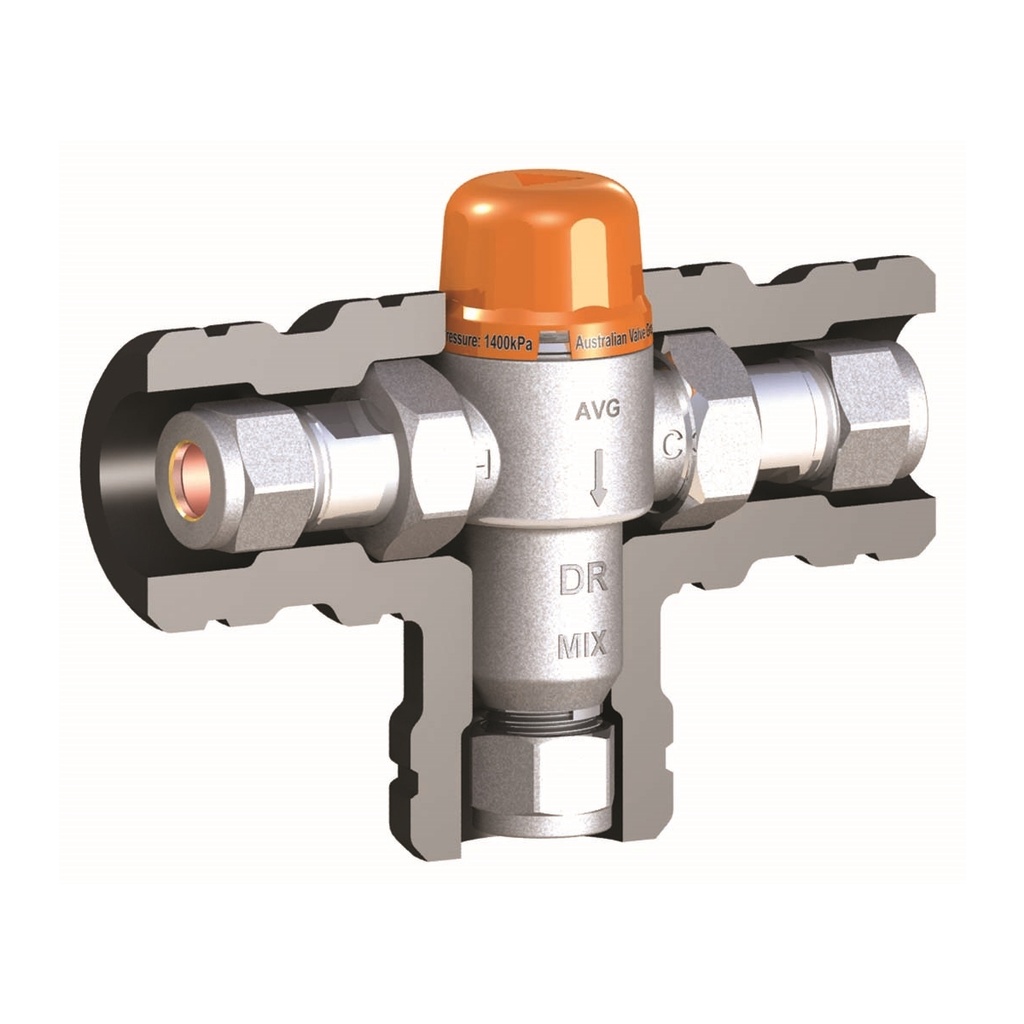

AVG Tempering Valve 20mm - High Performance Orange Cap c/w Insulation

Login | Register to see price
( Units)

    This combination does not exist.

    IN STOCK - Will ship today
    Details
    Product Code :
    FTV20HP
    Share :

    Description

    The FORGE Standard Tempering Valve is perfect for applications needing to mix hot and cold water to deliver a continuous temperate water temperature through a hot water system.

    Features

     Integral mesh strainers
    ​ Cast DR brass body
     Integral non return valves
     Innovative polymers for greater resistance to calcium deposits
     Factory set at 50°C (must be commissioned on site)
     Tested and certified to AS 4032.2
     Insulation jacket provided as per AS 4032.2

    Cold water supply temperature
    5°C - 30°C
    Hot water supply temperature
    60°C - 99°C
    Adjustable outlet temperature
    40°C - 50°C
    Set temperature
    50°C Standard (Must be commissioned on site by installer)
    Accuracy of outlet temperature
    ±3°C ( as per AS 4032.2)
    Minimum temperature differential
    15°C < (between hot supply and outlet temperature)
    Maximum working pressure (static)
    1400Kpa
    Maximum working pressure (dynamic)
    500Kpa
    Pressure supply differential (dynamic)
    2:1 Max
    Maximum permitted pressure variation in either supply
    To control outlet temperature to ±3°C (from supply pressure at commissioning) ±10% Max
    Minimum flow rate
    3.6 L/Min under outlet pressure 10Kpa
